uigetfile

Purpose

Retrieve name of a file to open through a dialog box.

Synopsis

[filename,pathname] = uigetfile('filterSpec','boxTitle',x,y)

Description

[filename,pathname] = uigetfile('filterSpec','boxTitle',x,y) displays a dialog box in which you can fill in or select the filename and path strings, where

  • filterSpec filters the types of files initially displayed in the dialog box. For example, '*.m' lists all MATLAB M-files within a selected directory.
  • boxTitle is a string containing the title of the dialog box.
  • x is the x-position, in pixels, of the lower-left corner of the dialog box (not supported on all systems).
  • y is the y-position, in pixels, of the lower-left corner of the dialog box (not supported on all systems).
    All parameters are optional, but if one is present, all preceding parameters must also be present. A successful return occurs only if the file exists. If you select a file that does not exist, the function displays an error message and control returns to the dialog box. You can then enter another filename, or press the Cancel button.

    filename is a string containing the name of the file selected in the dialog box. If you press the Cancel button or if any error occurs, filename is set to 0.

    pathname is a string containing the path of the file selected in the dialog box. If you press the Cancel button or if any error occurs, pathname is set to 0.

    Examples

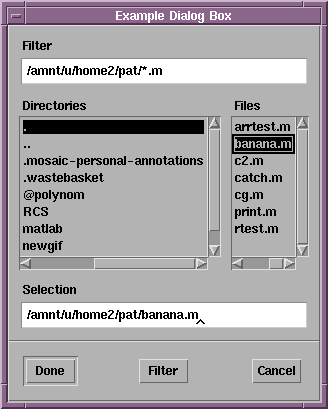

    An example of uigetfile's operation on one platform is

    [fname,pname] = uigetfile('*.m','Example Dialog Box')



fname =
banana.m

pname =
/amnt/u/home2/pat
    The exact appearance of the dialog box depends on your windowing system.

    See Also

    uiputfile
