The KIT ForHLR II log

System:	Karlsruhe Institue of Technology ForHLR II System
Duration:	Jun 2016 to Jan 2018
Jobs:	114,355

This log contains one and a half years worth of accounting records from the ForHLR II system located at the Karlsruhe Institue of Technology in Germany. Note that the log doea not include the full workload on this machine.

The KIT ForHLR II workload log was graciously provided by Mehmet Soysal. If you use this log in your work, please use a similar acknowledgment.

Downloads:

KIT-FH2-2016-1.swf

1.2 MB gz

original log in SWF format as received

(May need to click with right mouse button to save to disk)

Papers Using this Log:

This log was used in the following papers:
[soysal19]

System Environment

The ForHLR phase II system had the following configuration:

5 login nodes with 20 cores and 256 GB memory each
1152 "thin" compute nodes with 20 cores and 64 GB memory each
21 "fat" compute nodes with 48 cores, 4 NVIDIA GeForce GTX980 Ti graphics cards, and 1 TB memry each
InfiniBand interconnection network
8 service nodes
Total memory of 95 TB
Peak performance is approximately 1 PFlop
Luster parallel file system

System web page at KIT (in German)

Log Format

The original log is available as KIT-FH2-2016-1.swf.

The Log in Graphics

File KIT-FH2-2016-1.swf

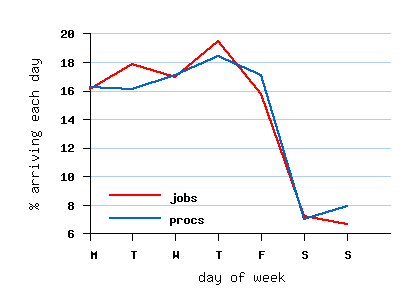

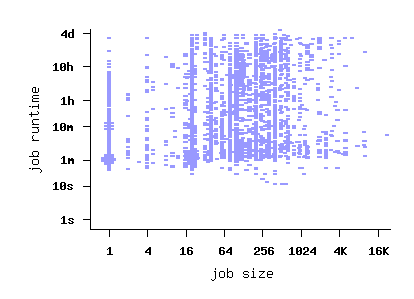

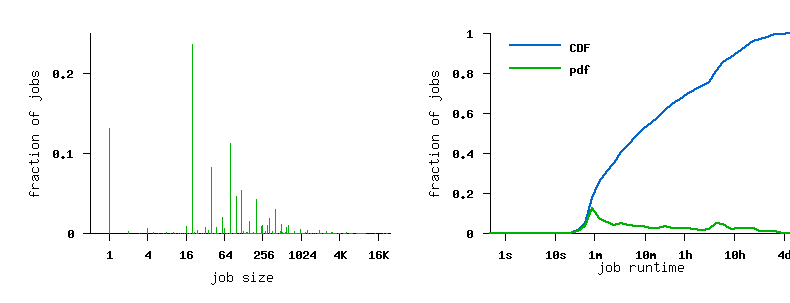

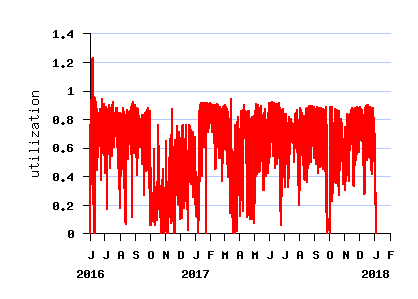

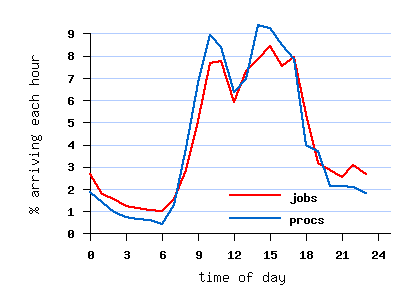

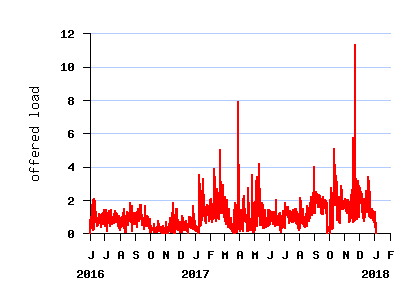

weekly cycle daily cycle burstiness and active users job size and runtime histograms job size vs. runtime scatterplot utilization offered load performance
